iPhone 4S TearDown Images

iFixit has now got their new iPhone 4S and they are playing with it right now as usual. They have just started the teardown process of iPhone 4S and updating the Images of it. So let's see in the images below, With what Hardware Apple has created(composed) the new iPhone 4S. And it is also to update you that iPhone 4S has only 512 MB of RAM.Check out iPhone 4S TearDown Images Below:

Click on the Image to see it in HD:

  • Apple A5 Dual-core Processor
  • Qualcomm RTR8605 Multi-band/mode RF Transceiver
  • Skyworks 77464-20
  • Avago ACPM-7181 Power Amplifier
  • TriQuint TQM9M9030 Multi-Mode Quad-Band Power Amplifier Module.
  • TriQuint TQM66052 (possibly a PA-Duplexer Module)

Qualcomm MDM6610 chipset (an upgrade from the iPhone 4's MDM6600)

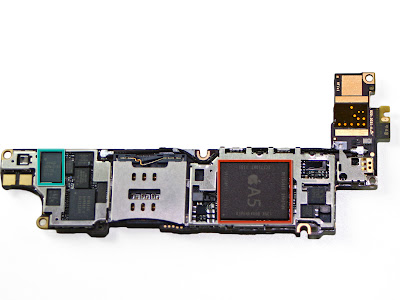

Apple A5 Processor

  • Apple A5 Processor
  • Avago ACPM-7181 Power Amplifier
Avago ACPM-7181 Power Amplifier

Apple chip
Front display assembly

Toshiba THGVX1G7D2GLA08 16 GB 24 nm MLC NAND flash memory.



Final layout.
